Fire Retardant AC Pipe Insulation XLPE IXPE Foam For Refrigeration Copper Pipe
제품 상세 정보:
| Place of Origin: | Made In China |
| 브랜드 이름: | EkkoFlex |
| 인증: | BS476,UL94,RoHS,REACH |
결제 및 배송 조건:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| 가격: | $0.6-1.2/m |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
상세 정보 |
|||
| Product name: | Fire Retardant AC Pipe Insulation XLPE IXPE Foam For Refrigeration Copper Pipe | Structure: | PEF+EPE+XPE foam |
|---|---|---|---|
| Density: | 20-35Kg/m3 | Color: | white,red ,blue or customized |
| Thermal Conductivity: | 0.027-0.030W/m.K | Flammability: | Class B2 |
| Working Temperature: | -50-+100ºC | Flame Resistance oxygen index: | 18-25.5 |
제품 설명

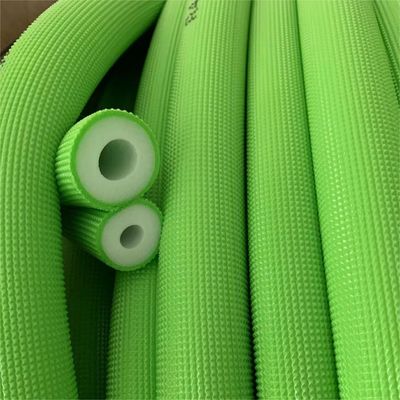

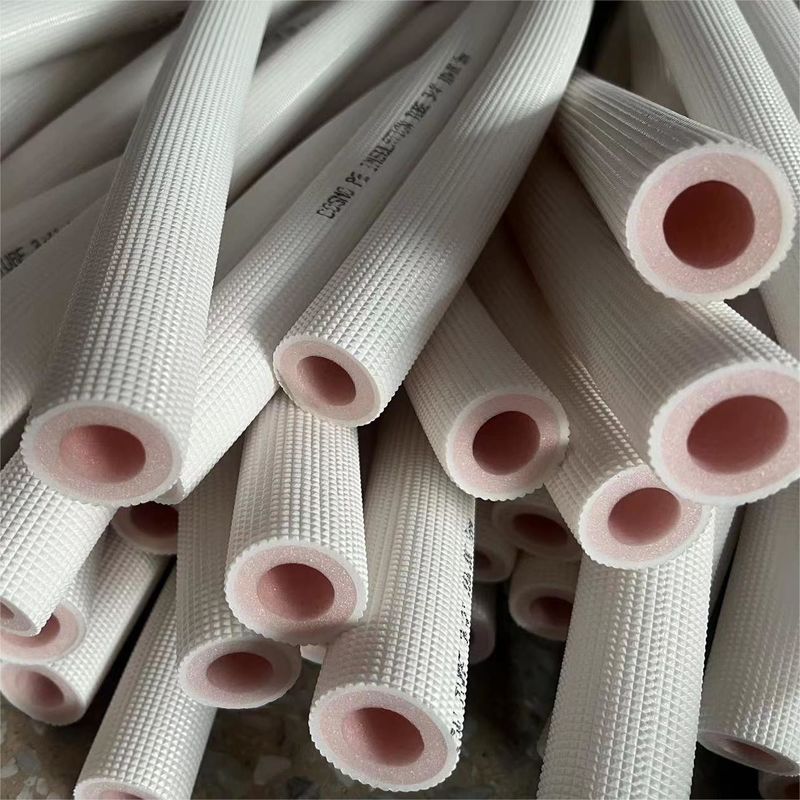

Fire Retardant AC Pipe Insulation XLPE IXPE Foam For Refrigeration Copper Pipe
The 3-layer embossed skin insulation pipe is widely used for insulation of air conditioning connecting pipes, solar pipes,
underfloor heating pipes, and residential water pipes. lt has a three-layer structure, the inner layer is an EPE foam thermal
insulation layer, the middle layer is an XPE (Chemical cross-link) or lXPE (Electronic crosslink) foam anti-aging layer, and the
outer layer is covered by plastic film to increase beauty and toughness. It can be made into single tube and composite double tube, with characteristics such as high temperature resistance and long service life.
Dimension for twin-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ12mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ9*Φ12mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
Dimension for single-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ15mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ15*Φ22mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
FAQ:
Q1:Can I get samples before order?
Yes, samll size sample is free, and express fee need to be covered in your side
Q2:Do you support OEM made?
OEM is warmly welcomed, we can arrange your own color or label, print your OEM package,
and make your own shape according to your drawing.
Q3:What’s your warranty policy?
We provide 12 Months warranty on all of our products, which means during the warranty period,
we’ll repair the defective items or other solutions with quality problems.
Q5: Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again,
like to be remade to be mattress, underlay, furniture filling etc
