35kg/M³ Pet Film Coated Xpe Foam XLPE Sheet For HVAC Pipe Insulation
제품 상세 정보:
| Place of Origin: | Made In China |
| 브랜드 이름: | EkkoFlex |
| 인증: | BS476,UL94,RoHS,REACH |
결제 및 배송 조건:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| 가격: | $0.6-1.2/m |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
상세 정보 |
|||
| Product name: | 35kg/M³ Pet Film Coated Xpe Foam XLPE Sheet For HVAC Pipe Insulation | Structure: | PEF+EPE+XPE foam |
|---|---|---|---|
| Density: | 20-35Kg/m3 | Color: | white,red ,blue or customized |
| Thermal Conductivity: | 0.027-0.030W/m.K | Flammability: | Class B2 |
| Working Temperature: | -50-+100ºC | Flame Resistance oxygen index: | 18-25.5 |
제품 설명

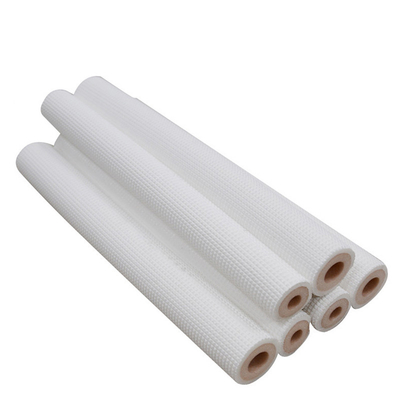

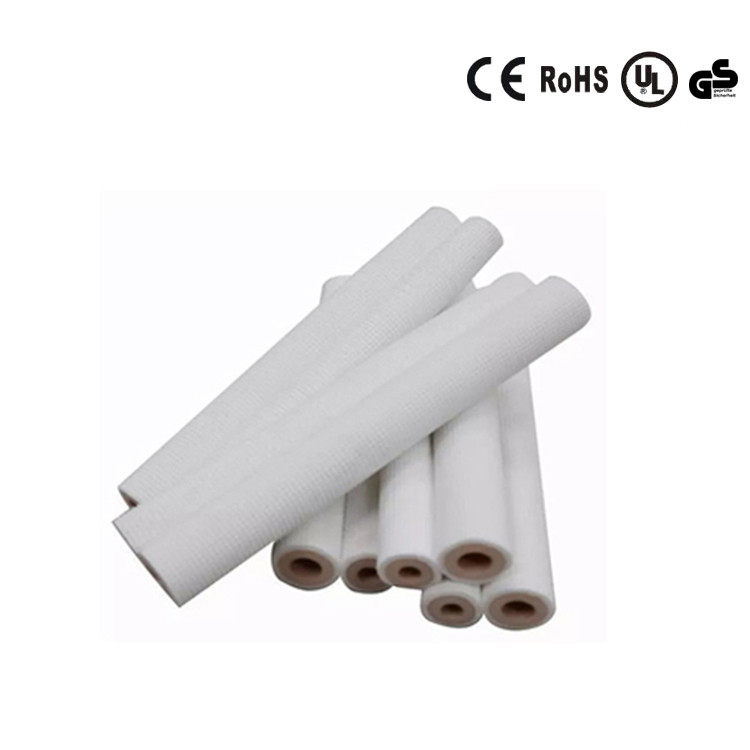

35kg/M³ Pet Film Coated Xpe Foam XLPE Sheet For HVAC Pipe Insulation
35kg/m³ PET film coated XPE/XLPE foam sheet is designed for HVAC pipe insulation. The medium density ensures a balance of flexibility and structural strength, fitting snugly around pipes. The PET film layer adds durability, resisting abrasion and moisture to protect the foam core.
Its closed-cell structure delivers superior thermal insulation, reducing heat transfer and boosting energy efficiency. Resistant to mold and corrosion, it maintains performance in diverse environments. Suitable for residential, commercial, and industrial HVAC systems, it’s easy to install and ensures long-term, reliable pipe insulation.
Dimension for twin-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ12mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ9*Φ12mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
Dimension for single-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ15mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ15*Φ22mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
FAQ:
Q1:What's the difference between open and closed cell foam?
Insulation foam is referred to open cell or closed cell because of the difference between the small bubbles (cells) that make up the foam.
The cells are pressed together, so air and moisture are unable to get inside the foam. Because of this,closed cell foam is much more rigid
and stable than open cell foam.
Q2: How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q3:What’s your warranty policy?
We provide 12 Months warranty on all of our products, which means during the warranty period,
we’ll repair the defective items or other solutions with quality problems.
Q5: Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again,
like to be remade to be mattress, underlay, furniture filling etc
