상세 정보 |
|||
| 제품 이름: | 고온 저항 EPDM 고무 스폰지 씰 스트립 자동차 용 | 재료: | 에틸렌-프로필렌-디엔 단량 |
|---|---|---|---|
| 세포 구조: | 셀 EPDM 폼을 닫고 개방 셀 EPDM 폼 | 밀도 (오픈 셀): | 95-100kg/m³ |
| 밀도 (폐쇄 된 셀): | 110-150kg/m³ | 특징: | 높은 탄성 완충, 온도 저항, 화염 저항 |
| 애플리케이션: | 가정용 기계; 전자 장비 봉인 | 색상: | 검은색 |
| 두께: | 1-50mm | 최대 크기: | 1000*2000*50mm |
| 강조하다: | high temperature resistant EPDM rubber seal,automotive EPDM sponge strip,EPDM rubber foam seal strip |
||
제품 설명

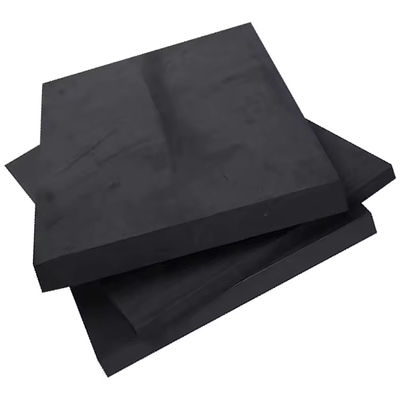

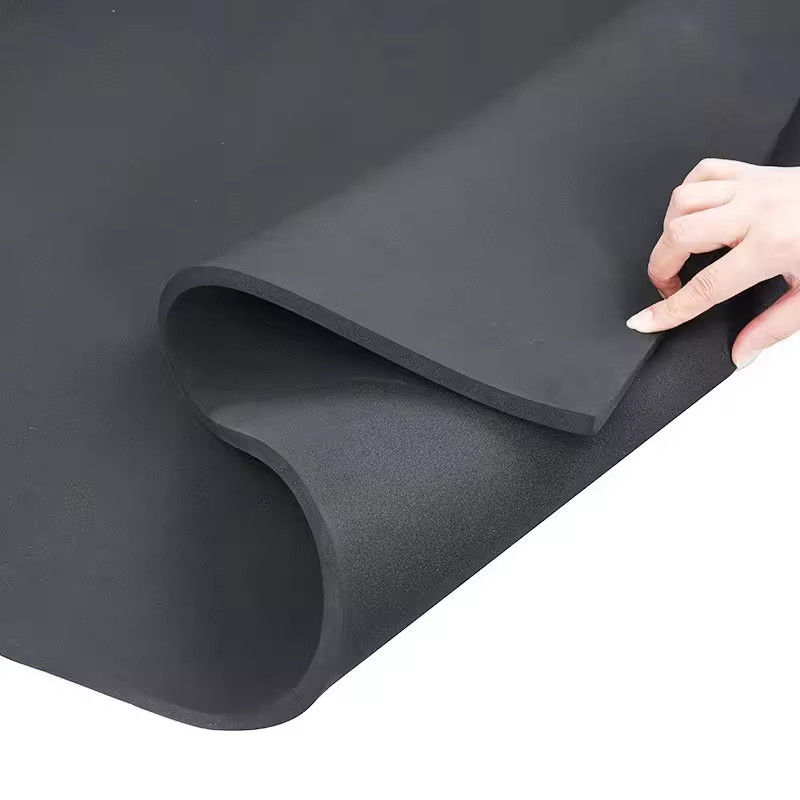

High Temperature Resistant EPDM Rubber Sponge Seal Strip For Automotive
Density is a key parameter of EPDM foam, directly affecting its compressibility, resilience, and sealing properties.
- Low-density EPDM foam (0.03-0.1 g/cm³): Typically used in applications requiring lightweight materials, such as cushioning and shock absorption pads in electronic devices. Due to its low density, it offers good compressibility but relatively poor resilience and durability, making it suitable for applications with less stringent sealing requirements.
- Medium-density EPDM foam (0.1-0.3 g/cm³): Widely used in sealing gaskets and waterproof gaskets in electronic devices. Medium-density foam strikes a balance between compressibility and resilience, providing excellent sealing while also offering a certain degree of durability.
- High-density EPDM foam (0.3g/cm³ and above): Suitable for applications requiring high sealing and durability, such as electronic device housing sealing and waterproof joints. High-density foam has excellent resilience and compressive strength, ensuring long-term sealing.
Specification:
EPDM(Closed cell)Physical Properties:
| Name&Model | Color | Density (kg/m³) |
Hardness (Shore C°) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-9016 | Black | 190±15 | 25°±5 | ≥500 | ≥130 | ≤40 | ≥3.0 | 950*1900*40 | |
| EPDM-9015 | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤45 | ≥2.0 | 1000*2000*50 | |
| EPDM-9010 | Black | 130±15 | 10°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-9008 | Black | 110±15 | 8°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-WS | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤40 | ≥2.0 | 1000*2000*50 | Sulfur free |
| EPDM-GBZ | Black | 250-500 | 30°-50° | ≥800 | ≥130 | ≤20 | ≥5.0 | 900*1800*35 | High density |
| EPDM-GYD | Black | 600-700 | 50°-75° | ≥1200 | ≥90 | ≤10 | ≥8.0 | 600*1200*30 | High hardness |
| EPDM-SMP | Black | 300±25 | 18°±5 | ≥500 | ≥150 | ≤25 | ≥2.0 | 400*500*568 | Double sided crust |
EPDM (Open cell) Physical Property:
| Name&Model | Color | Density (kg/m³) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-10 | Black/Red/White | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | |
| EPDM-10Z | Black/Red | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | Fire retardant |
| EPDM-20 | Black | 85±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*30 |
The difference between EPDM ,NBR and CR rubber foam:
| Comparison of rubber foam performance parameters | |||
|
Performance |
EPDM Rubber Foam |
NBR Rubber Foam |
CR Rubber Foam |
|
Aging resistance |
good |
poor |
good |
|
electrical insulation |
very good |
poor |
poor |
|
preservative |
good |
general |
good |
|
Impact elasticity |
good |
general |
-- |
|
Adhesion properties |
poor |
good |
-- |
|
Oil resistance |
no |
very good |
good |
|
Wear resistance |
good |
good |
-- |
|
Heat resistance |
very good |
good |
good |
|
Cold resistance |
very good |
poor |
poor |
|
Ozone resistance |
good |
-- |
good |
|
Weather resistance |
very good |
general |
very good |
|
Flame resistance |
no |
-- |
good |
|
Acid resistance |
good |
good |
general |
|
Alkali resistance |
good |
good |
good |
FAQ:
Q1:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
Q2:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q3:How to get samples ?
Send enquiry to cissy@eco-polyfoam.com, with your details of the foams need, we will check reply in 24 hour
