상세 정보 |
|||
| 제품 이름: | 소프트 습기 저항 EPDM 고무 롤 주택 기계를위한 접착제 | 재료: | 에틸렌-프로필렌-디엔 단량 |
|---|---|---|---|
| 세포 구조: | 셀 EPDM 폼을 닫고 개방 셀 EPDM 폼 | 밀도 (오픈 셀): | 95-100kg/m³ |
| 밀도 (폐쇄 된 셀): | 110-150kg/m³ | 특징: | 높은 탄성 완충, 온도 저항, 화염 저항 |
| 애플리케이션: | 가정용 기계; 전자 장비 봉인 | 색상: | 검은색 |
| 두께: | 1-50mm | 최대 크기: | 1000*2000*50mm |
| 강조하다: | EPDM rubber roll adhesive back,moisture resistant EPDM foam,household machine rubber seal |
||
제품 설명

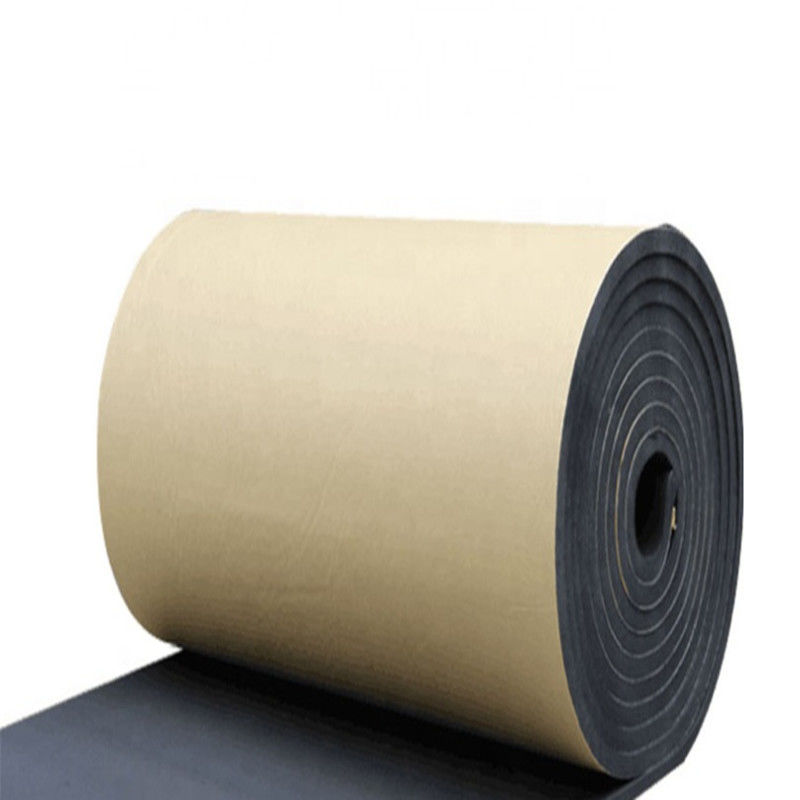

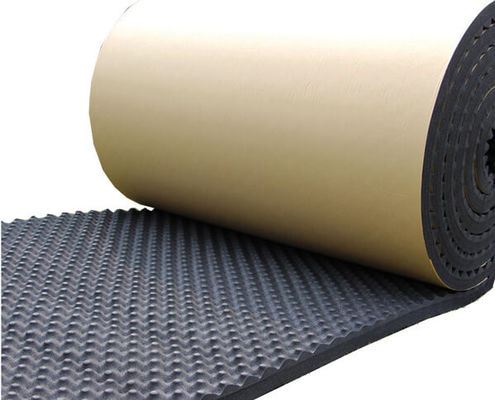

Soft Moisture Resistance EPDM Rubber Roll Adhesive Back For Household Machine
In the electrical industry, EPDM foam boasts excellent insulation properties. Unlike insulation used in wire and cable insulation and in insulating gaskets for electrical equipment, it effectively prevents short circuits and leakage in electrical equipment, enhancing its safety and reliability.
EPDM foam is also used in household goods manufacturing, such as floor mats and furniture cushioning. Its softness and durability make it a common material in the home, providing a comfortable user experience.
In the industrial sector, EPDM foam is often used for sealing, waterproofing, and chemical resistance in pipes, machinery, and other areas. Its weather and chemical resistance enable long-term stable operation in harsh environments, providing reliable support for industrial production.
Overall, EPDM foam, with its excellent performance characteristics, plays an important role in various fields, including automotive, construction, electrical, household, and industrial, providing convenience and reliability for people's lives and work.
Specification:
EPDM(Closed cell)Physical Properties:
| Name&Model | Color | Density (kg/m³) |
Hardness (Shore C°) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-9016 | Black | 190±15 | 25°±5 | ≥500 | ≥130 | ≤40 | ≥3.0 | 950*1900*40 | |
| EPDM-9015 | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤45 | ≥2.0 | 1000*2000*50 | |
| EPDM-9010 | Black | 130±15 | 10°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-9008 | Black | 110±15 | 8°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-WS | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤40 | ≥2.0 | 1000*2000*50 | Sulfur free |
| EPDM-GBZ | Black | 250-500 | 30°-50° | ≥800 | ≥130 | ≤20 | ≥5.0 | 900*1800*35 | High density |
| EPDM-GYD | Black | 600-700 | 50°-75° | ≥1200 | ≥90 | ≤10 | ≥8.0 | 600*1200*30 | High hardness |
| EPDM-SMP | Black | 300±25 | 18°±5 | ≥500 | ≥150 | ≤25 | ≥2.0 | 400*500*568 | Double sided crust |
EPDM (Open cell) Physical Property:
| Name&Model | Color | Density (kg/m³) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-10 | Black/Red/White | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | |
| EPDM-10Z | Black/Red | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | Fire retardant |
| EPDM-20 | Black | 85±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*30 |
The difference between EPDM ,NBR and CR rubber foam:
| Comparison of rubber foam performance parameters | |||
|
Performance |
EPDM Rubber Foam |
NBR Rubber Foam |
CR Rubber Foam |
|
Aging resistance |
good |
poor |
good |
|
electrical insulation |
very good |
poor |
poor |
|
preservative |
good |
general |
good |
|
Impact elasticity |
good |
general |
-- |
|
Adhesion properties |
poor |
good |
-- |
|
Oil resistance |
no |
very good |
good |
|
Wear resistance |
good |
good |
-- |
|
Heat resistance |
very good |
good |
good |
|
Cold resistance |
very good |
poor |
poor |
|
Ozone resistance |
good |
-- |
good |
|
Weather resistance |
very good |
general |
very good |
|
Flame resistance |
no |
-- |
good |
|
Acid resistance |
good |
good |
general |
|
Alkali resistance |
good |
good |
good |
